MATRIX Marine Touchscreen Display for Lowrance HDS PRO

Bigger screen. Better view.

Get a larger view of your Lowrance HDS PRO with the MATRIX Marine Touchscreen Display from TideForm 3D.

Available in 15.6″, 18.5″, 21.5″ and 23.8″ sizes, MATRIX mirrors your compatible sounder’s display and brings touchscreen control to a second position on your boat. Watch sonar returns, study structure and follow chart contours more comfortably from the bow or helm.

Keep your Lowrance. Add a larger touchscreen.

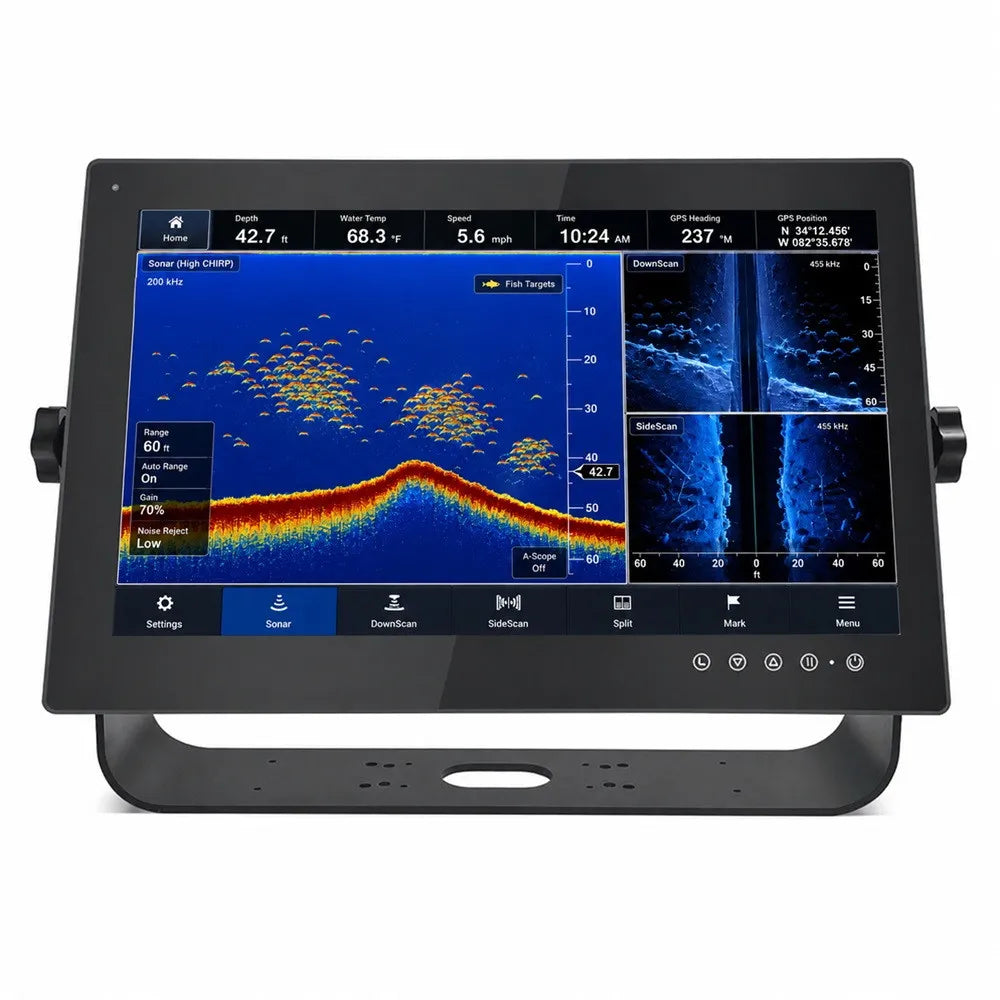

MATRIX displays the information supplied by your connected HDS PRO, including compatible sonar and chart views. Monitor your ActiveTarget sonar, SideScan, DownScan or navigation screens on a larger display while retaining access to your system’s touchscreen controls.

Available functions depend on the equipment connected to your Lowrance system.

Bright, clear viewing on the water

Every size features a 1920 × 1080 Full HD panel with 1500-nit brightness for daylight viewing.

An anti-glare surface helps reduce reflections, while optical bonding improves clarity and helps minimise internal fogging. Automatic light sensing adjusts brightness as conditions change, with manual adjustment available through the screen controls.

Touchscreen lockout for rain and spray

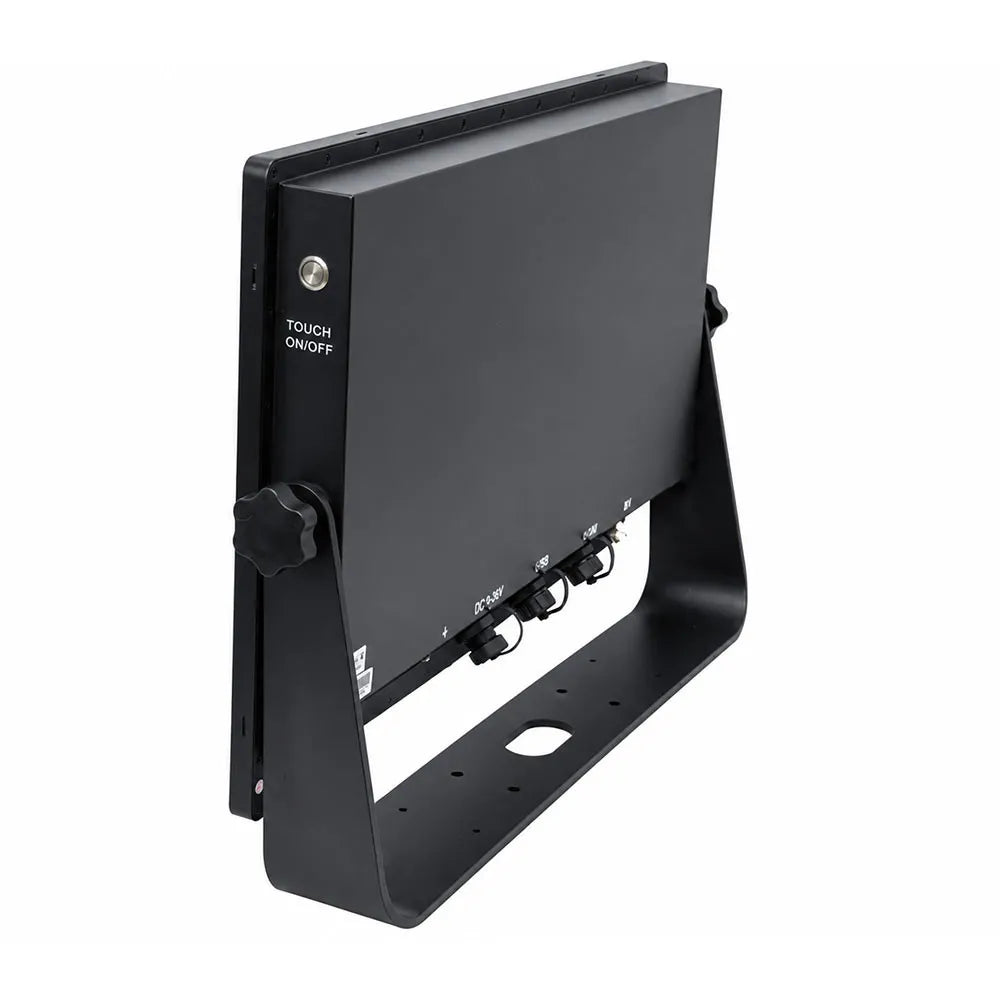

Disable touchscreen input with the dedicated touch on/off control to prevent rain or water spray from triggering unwanted commands.

Your picture stays on screen while touch input is disabled. Restore touchscreen operation when you’re ready to use it again.

Mounting

Use the included powder-coated stainless steel or thickened aluminium(model dependant) bracket for a secure installation with corrosion-resistant materials.

Front-accessible screen controls let you adjust the monitor without reaching behind it.

IP67 protection for marine use

The full IP67-rated enclosure and waterproof connections help protect against water and dust when correctly installed.

The 10-point capacitive touchscreen features 2 mm chemically strengthened cover glass with a 7H surface-hardness rating. Passive, fanless cooling keeps operation quiet.

Flexible power options

MATRIX accepts 9–36V DC input, accommodating a range of boat power systems. The package includes DC power connections and a 240V AC power supply certified to Australian standards, giving you flexibility for onboard use or setup with a suitable mains connection.

Choose your screen size

Choose a smaller screen where mounting space is limited, or a larger display for more comfortable viewing from your fishing position.

Compatibility and connections

This MATRIX range is designed for compatible Lowrance HDS PRO systems. Manufacturer testing is confirmed with the HDS PRO 12.

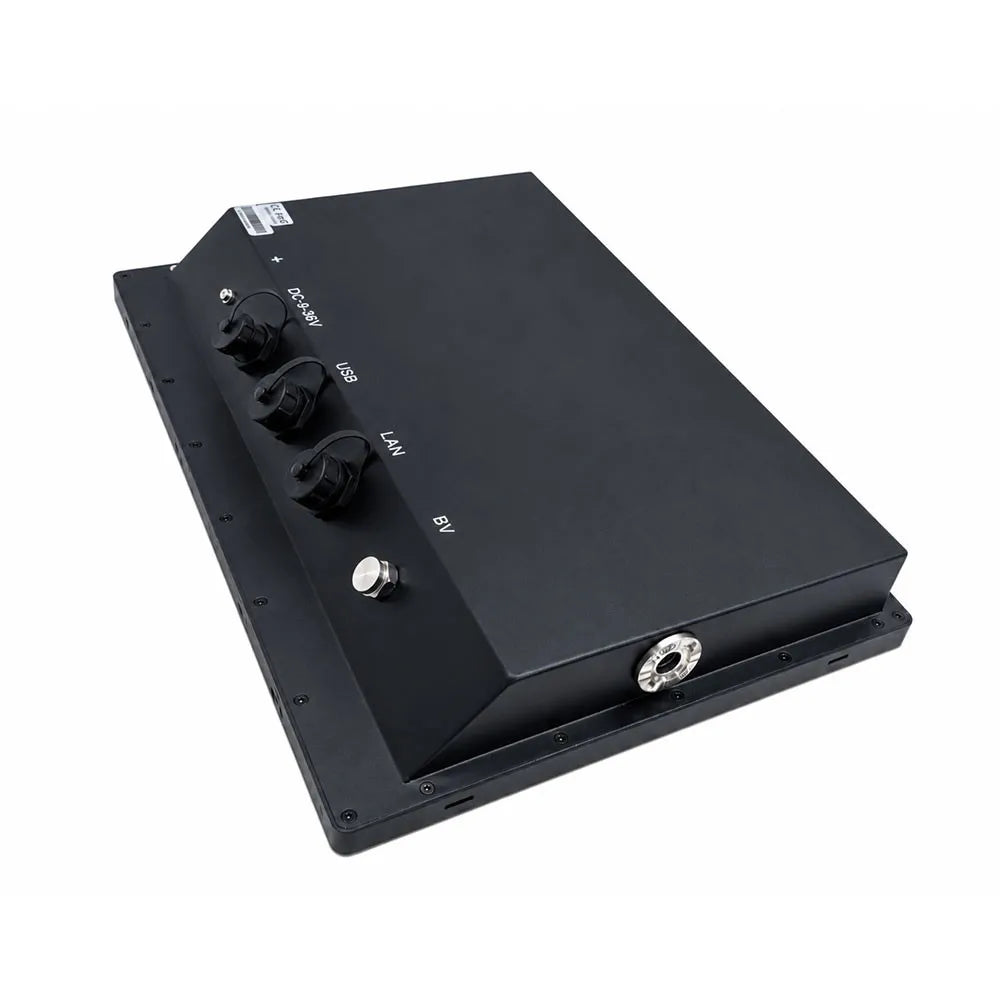

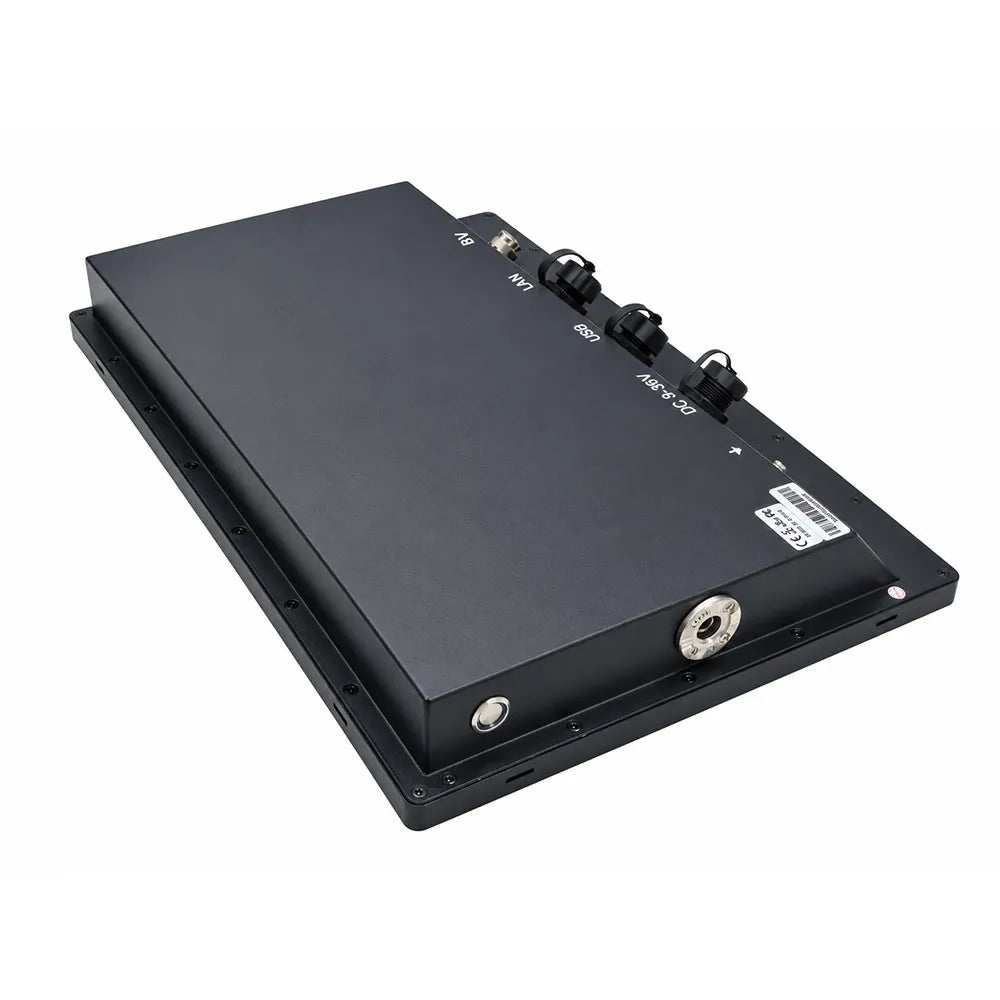

Video is supplied through a LAN connection, with a separate USB connection for touchscreen control. These are dedicated Lowrance displays, with different connections from the MATRIX HDMI/Garmin range.

For other HDS PRO screen sizes, contact TideForm 3D with your full model number before ordering. Compatibility with HDS LIVE, HDS Carbon, Elite FS and other Lowrance series is not confirmed for this listing.

Preorder with a 30% deposit

Where preorder is offered for an out-of-stock screen, reserve yours with a 30% deposit. The remaining 70% is payable once your screen is ready for dispatch.

Check the estimated dispatch timeframe for your selected size before ordering. We’ll keep you updated and notify you when the balance is due. Your order will ship after final payment is received.

In-stock screens are purchased through the normal checkout at full payment.

Please note: MATRIX is an external display and requires a compatible connected Lowrance system. It does not contain its own sonar or chartplotter. The sounder, transducers and sonar modules are not included.

MATRIX is an independent product supplied by TideForm 3D and is not manufactured or endorsed by Lowrance.
